| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RVYUAN |
| प्रमाणन: | IEC/NEMA/JIS/RoHS/ISO |
| मॉडल संख्या: | कक्षा 220 |
| न्यूनतम आदेश मात्रा: | 10 किलो |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | गत्ते का डिब्बा के साथ स्पूल |
| प्रसव के समय: | 2-15 कार्य दिवस |
| भुगतान शर्तें: | टी/टी/पेपैल |
| आपूर्ति की क्षमता: | अपनी मांग पूरी करें |
| Shape: | Rectangular | Conductor Dimension (Width): | 1.0mm |
|---|---|---|---|
| Unilateral Insulation Layer Thickness (Width): | 0.2mm | Applications: | Motor, transformer |
| Thermal Grade: | 220 | Key word: | MW 84-C 0.2X1.0mm Polyamideimide 220℃ Enameled Coated Flat Copper Wire for Wound Coils |
| Thermal rating: | 220 | Enamel coating: | AIW |
| प्रमुखता देना: | polyamideimide enameled flat copper wire,0.2X1.0mm enameled copper wire |
||
| Attribute | Value |
|---|---|
| Shape | Rectangular |
| Conductor Dimension (Width) | 1.0mm |
| Unilateral Insulation Layer Thickness (Width) | 0.2mm |
| Applications | Motor, transformer |
| Thermal Grade | 220 |
| Thermal Rating | 220℃ |
| Enamel Coating | AIW |

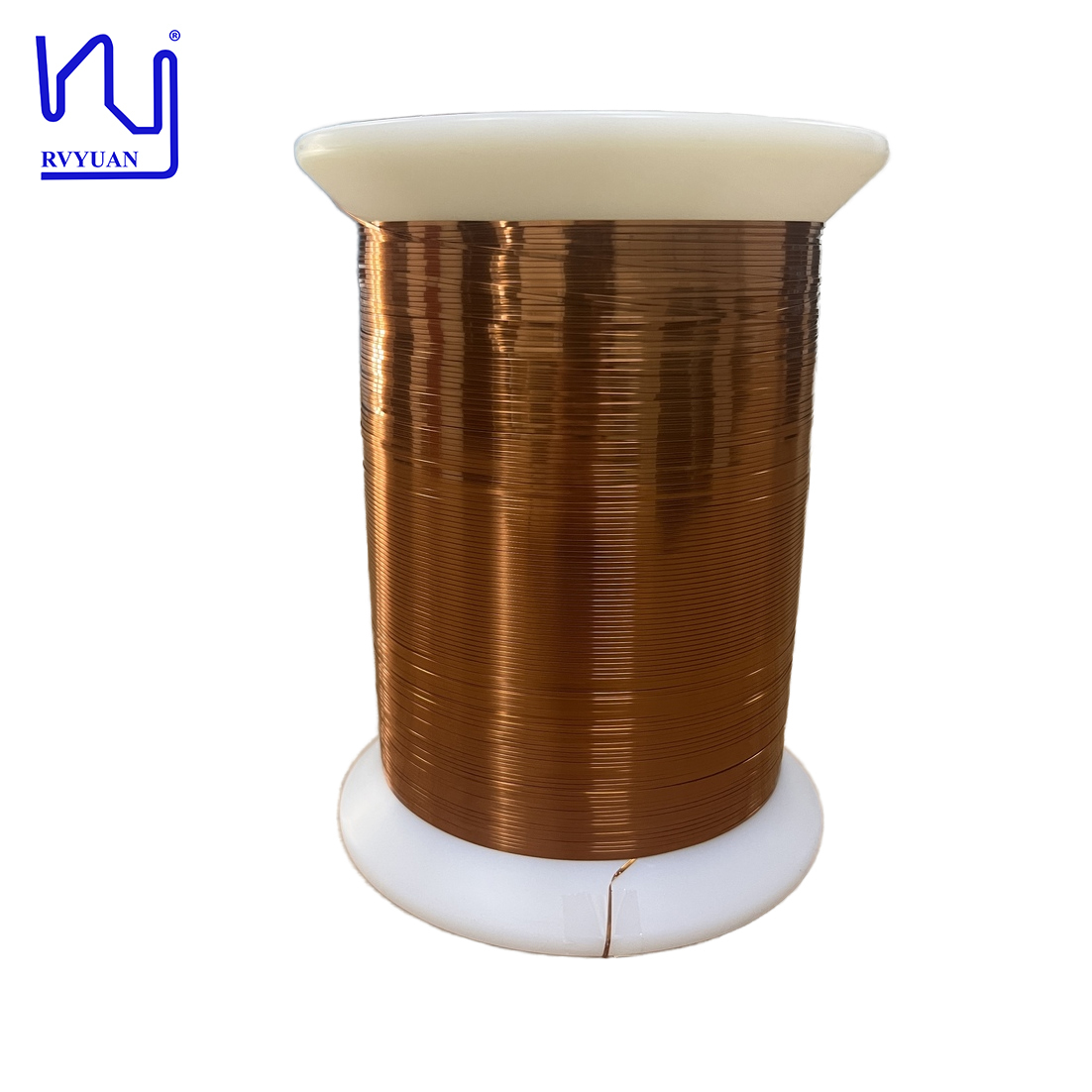

MW 84-C 0.2X1.0mm Polyamideimide 220℃ enameled coated flat copper wire is designed for wound coils with superior performance characteristics.
Ideal for various industries including electronics, automotive, and digital applications to enhance product efficiency and performance.
| Item | Conductor dimension | Insulation thickness | Overall dimension | Dielectric breakdown voltage (kV) | Conductor resistance (Ω/km 20℃) | |||
|---|---|---|---|---|---|---|---|---|
| T (mm) | W (mm) | T (mm) | W (mm) | T (mm) | W (mm) | |||
| SPEC AVE | 0.200 | 1.000 | 0.025 | 0.0025 | / | / | ||
| Max | 0.209 | 1.060 | 0.040 | 0.004 | 0.250 | 1.100 | 96.380 | |
| Min | 0.191 | 0.940 | 0.010 | 0.010 | 0.700 | |||
