| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RVYUAN |
| प्रमाणन: | ISO9001/ISO14001 /UL/SGS |
| मॉडल संख्या: | यूएसटीसी |
| न्यूनतम आदेश मात्रा: | 10 किलो |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | गत्ते का डिब्बा के साथ स्पूल |
| प्रसव के समय: | 2-15 कार्य दिवस |
| भुगतान शर्तें: | वार्ता |
| आपूर्ति की क्षमता: | अपनी मांग पूरी करें |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| प्रमाणन: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire | Key word: | High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire |
| प्रमुखता देना: | Pure Copper Twisted Litz Wire,0.1mm Yarn Wrapped Litz Wire,Durable Twisted Litz Wire |
||

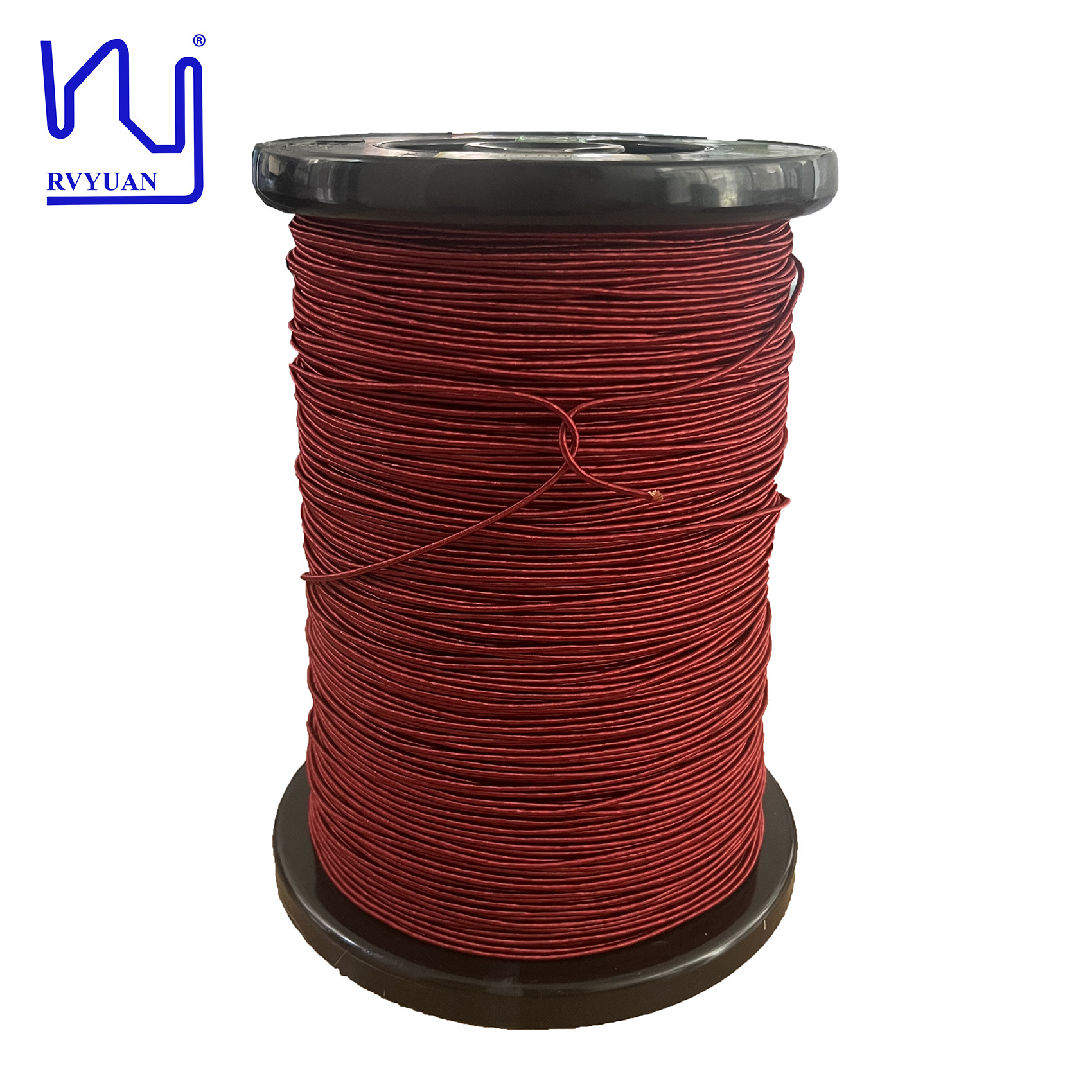

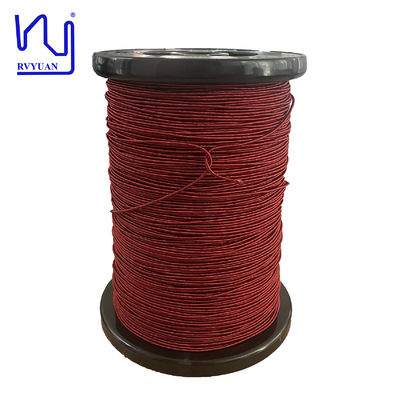

High-quality 0.1mmX200 Yarn Wrapped Pure Copper Twisted Litz Wire
What makes our silk covered litz wire unique is its customization options. We understand that different projects may require specific color schemes or aesthetic preferences. That’s why we offer a wide range of colored polyester yarns, allowing you to customize the wire to meet your unique needs. Whether you need a specific color to match your design or create a unique look for branding purposes, we have a high-performance wire that’s designed just for you.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
