| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RVYUAN |
| प्रमाणन: | ISO9001/ISO14001 /UL/SGS |
| मॉडल संख्या: | यूएसटीसी |
| न्यूनतम आदेश मात्रा: | 10 किलो |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | गत्ते का डिब्बा के साथ स्पूल |
| प्रसव के समय: | 2-15 कार्य दिवस |
| भुगतान शर्तें: | वार्ता |
| आपूर्ति की क्षमता: | अपनी मांग पूरी करें |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| प्रमाणन: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire | Key word: | 2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire |
| प्रमुखता देना: | 0.1mm Stranded Wire,2USTC-F Copper Litz Wire,Red Silk Litz Wire |
||

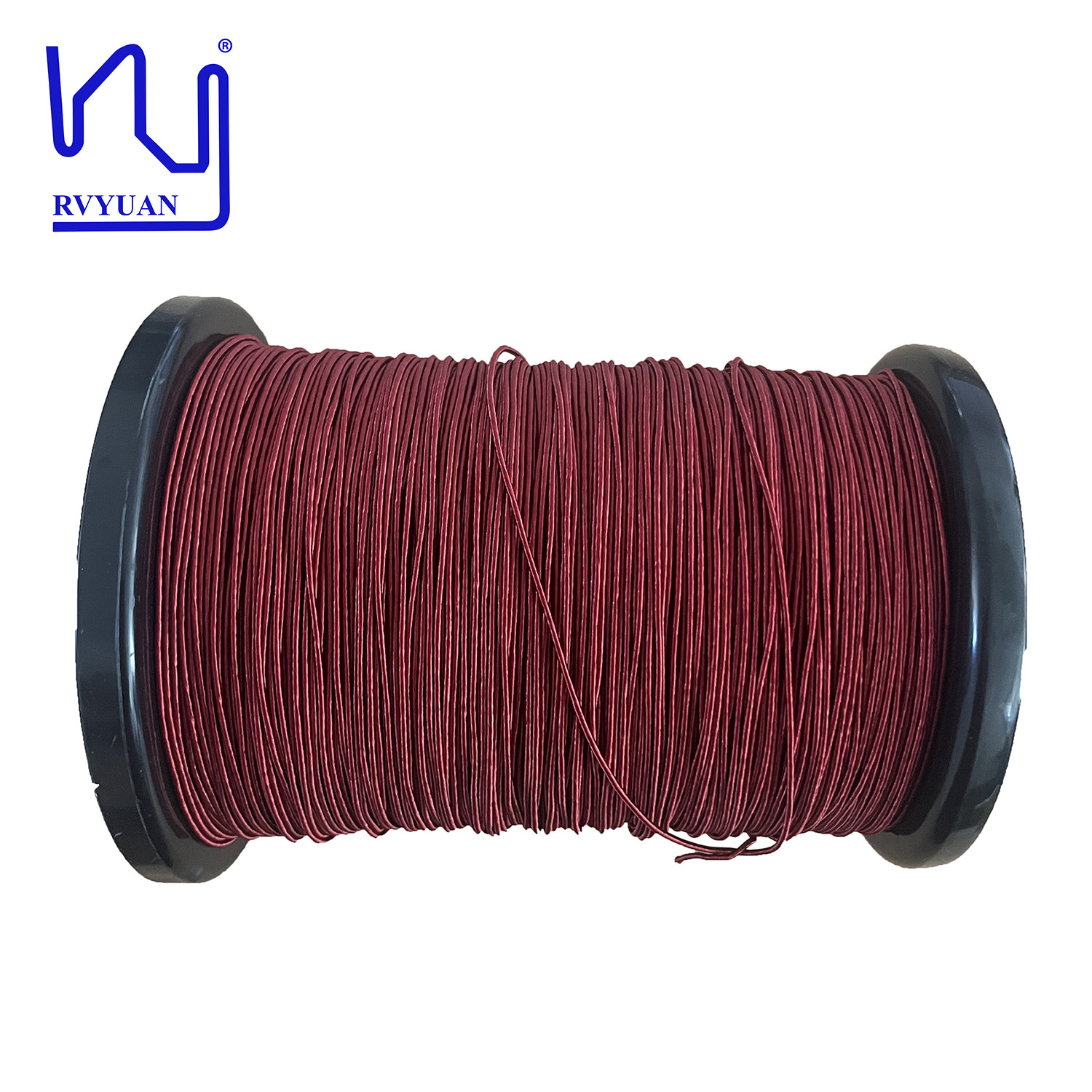

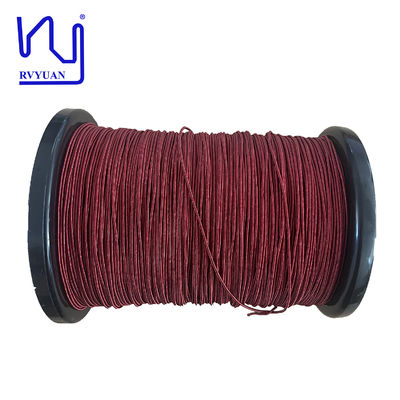

2USTC-F 0.1mm Stranded Wire Red Silk Covered Copper Litz Wire
Silk covered Litz wire is designed to minimize eddy current losses, which are critical in transformer winding. Silk covered Litz wire is an indispensable component for engineers and manufacturers seeking to improve transformer performance and reliability. The combination of Silk covered Litz wire and Litz wire technology not only improves electrical performance, but also helps extend the life of the winding, making it a smart investment for any project.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
