| उत्पत्ति के प्लेस: | चीन |
|---|---|
| ब्रांड नाम: | RVYUAN |
| प्रमाणन: | ISO9001/ISO14001 /UL/SGS |
| मॉडल संख्या: | यूएसटीसी |
| न्यूनतम आदेश मात्रा: | 10 किलो |
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | गत्ते का डिब्बा के साथ स्पूल |
| प्रसव के समय: | 2-15 कार्य दिवस |
| भुगतान शर्तें: | वार्ता |
| आपूर्ति की क्षमता: | अपनी मांग पूरी करें |
| Diameter: | 0.1mm | Temperature: | 155/180 |
|---|---|---|---|
| प्रमाणन: | IEC/NEMA/JIS/RoHS/ISO | AWG SIZE: | 38 |
| Conductor: | Copper | Strands: | 200 |
| Breakdown voltage: | 1300 | Insulation: | UEW |
| Product name: | 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire | Key word: | 2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire |
| प्रमुखता देना: | Red Polyester Covered Litz Wire,200 Strands Polyester Covered Litz Wire,Polyester Covered 0.1mm Litz Wire |
||

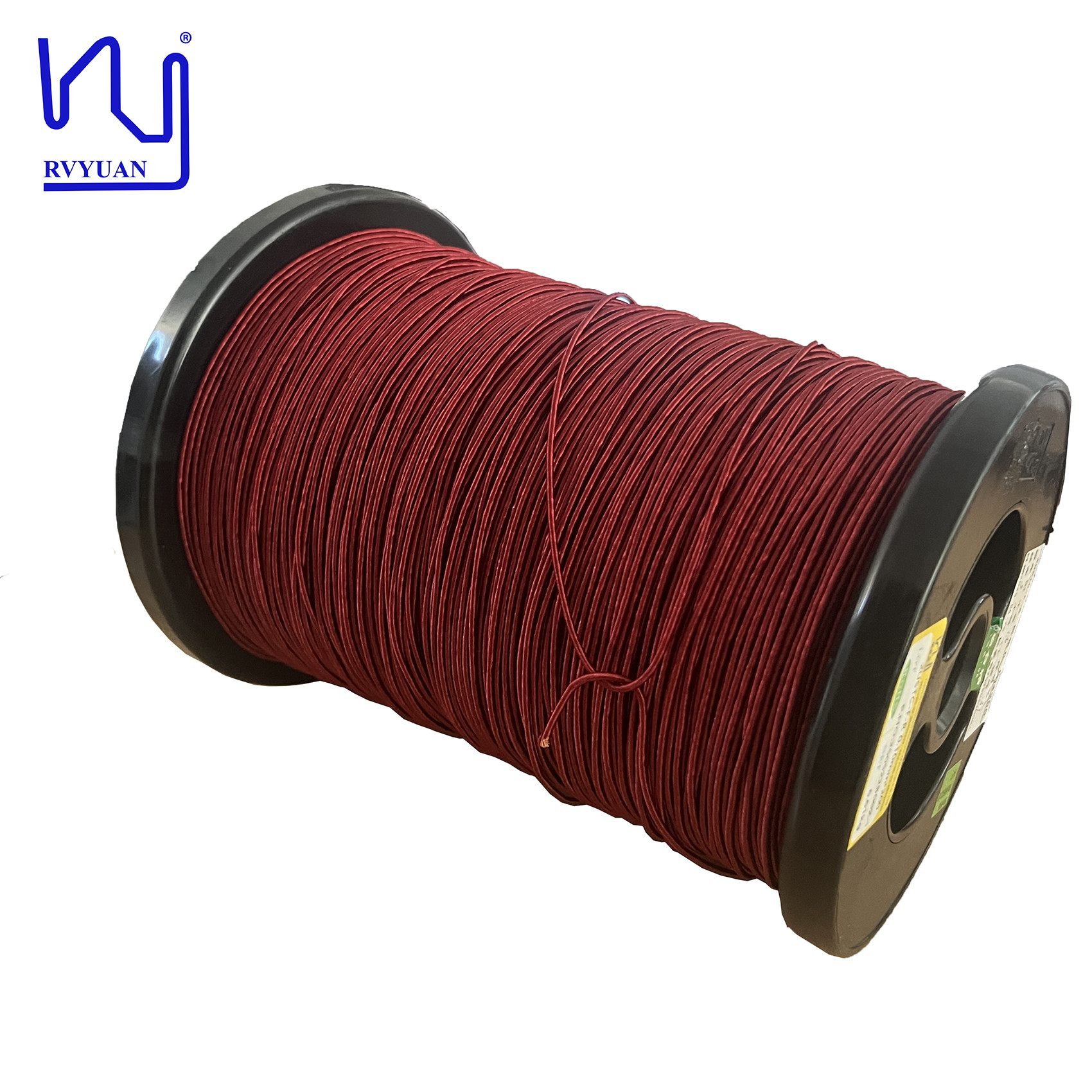

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
This innovative wire features a unique bright red polyester outer covering that not only enhances aesthetics, but also offers exceptional durability and environmental resistance. Its inner core is carefully twisted with 200 strands of 0.1 mm enameled copper wire to ensure optimal conductivity and performance. Rated to 155 degrees Celsius, this wire is ideal for transformer applications because it can withstand the harsh environment of high frequency operation.
| Outgoing test of stranded wire | Spec: 0.1x200 | Model: 2USTC-F |
| Item | Standard | Test result |
| Outer conductor diameter(mm) | 0.107-0.125 | 0.110-0.114 |
| Conductor diameter(mm) | 0.10±0.003 | 0.0980-0.10 |
| Overall diameter (mm) | Max.1.98 | 1.75-1.85 |
| Pitch(mm) | 29±5 | √ |
| Max resistance (Ω/m at20℃) | Max. 0.01191 | 0.01088 |
| Breakdown voltage Mini (V) | 1100 | 3000 |
