| Place of Origin: | China |
|---|---|
| ब्रांड नाम: | Ruiyuan |
| प्रमाणन: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.18mm |
| Minimum Order Quantity: | 5 kg |
| मूल्य: | negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | AIW220 0.18mm Enameled Copper Wire Magnet Wire | Thermal rating: | 220 |
|---|---|---|---|
| Insulation Material: | AIW | Diameter: | 0.18mm |
| Conductor material: | Copper | Key word: | AIW220 0.18mm Enameled Copper Wire Magnet Wire |

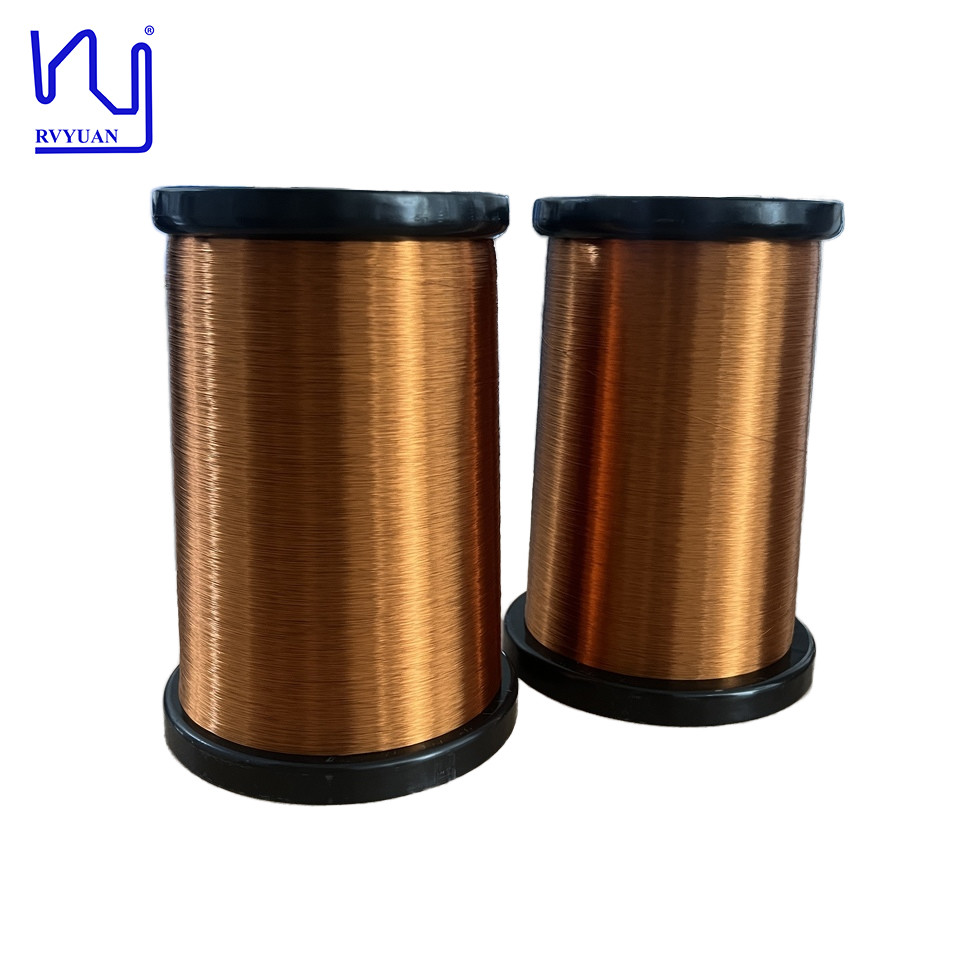

AIW220 0.18mm Enameled Copper Wire Magnet Wire
Ruiyuan is well known for its expertise in producing enameled round copper wire in a variety of temperature grades, including 155 degrees, 180 degrees, 200 degrees, and 220 degrees. Our commitment to quality ensures that you receive a product that meets your specific needs. We offer custom sizes, with wire diameters ranging from 0.012 mm to 1.8 mm, allowing you to find the wire that best suits your project.
| Test Items | Requirements | Test Data | Result | ||
| Min Sample |
Ave Sample |
Max Sample | |||
| Conductor Diameter | 0.18mm ±0.003mm | 0.180 | 0.180 | 0.180 | OK |
| Thickness of Insulation | ≥0.008mm | 0.019 | 0.020 | 0.020 | OK |
| Basecoat dimensions Overall dimensions | Min.0.226 | 0.210 | 0.211 | 0.212 | OK |
| Bonding film thickness | ≤ 0.004mm | 0.011 | 0.011 | 0.012 | OK |
| DC Resistance | ≤ 715Ω/km | 679 | 680 | 681 | OK |
| Elongation | ≥15% | 29 | 30 | 31 | OK |
| Breakdown Voltage | ≥2600V | 4669 | OK | ||
| Bonding Strength | Min.29.4 g | 50 | OK | ||
